Configure AI Gateway Integrations

To securely adopt AI workflows, use the JumpCloud AI Gateway to connect your enterprise applications as trusted Model Context Protocol (MCP) servers. By pointing their AI clients to a single JumpCloud endpoint, users can access and authorize all of their MCP resources in one place without complicated configurations. This allows you to provide, manage, and audit secure access to the MCP servers you control.

Use this article to learn how to add MCP servers in JumpCloud and to find supported integrations. Jump to Connecting Supported MCP Servers to find specific setup instructions for your enterprise applications.

Important

We recommend reviewing Get Started: AI Gateway to familiarize yourself with core concepts like Agentic AI, Model Context Protocol (MCP) servers, and the JumpCloud authentication flow before configuring these integrations.

Prerequisites:

  • You must associate every MCP server with an application in JumpCloud so you can scope access using groups. You can use an existing application or create one during MCP server setup. For an MCP-only application, select the Manage MCP Servers checkbox during application creation. See Creating an Application from the AI Gateway.

Considerations:

  • An application appearing in the JumpCloud Single Sign-On (SSO) list does not guarantee it natively supports MCP. Verify support with the vendor before configuration.

Adding MCP Servers​

Register your enterprise applications as MCP servers in the Admin Portal. Because each application has specific prerequisite configurations, review the application’s setup guide before adding the server to JumpCloud.

Each MCP server must be associated with an application. You can use an application with SSO configured or an MCP-only application that does not require SSO.

Associating each MCP server with an application lets you control access through that application’s groups. Assign user groups or agent groups to control which users and agents can access its MCP servers.

note

For new applications, the AI Gateway tab appears when you select the Manage MCP Servers checkbox during application creation. To enable it later, open the application and click Actions > Manage MCP Servers. Applications created before this enhancement retain their existing tabs. See Get Started: SSO Applications.

To add an MCP server from the AI Gateway:

  1. Log in to the JumpCloud Admin Portal.
Important

If your data is stored outside of the US, check which login URL you should be using depending on your region. If your organization uses LDAP, RADIUS, or requires firewall allow list configuration, the Fully Qualified Domain Names (FQDNs) will also be region specific. See JumpCloud Data Centers for the URLs, FQDNs, and IP addresses.

  1. Go to Access > AI Gateway.

  2. Select the Servers tab.

  3. Click + Add Server. The Add Server modal appears.

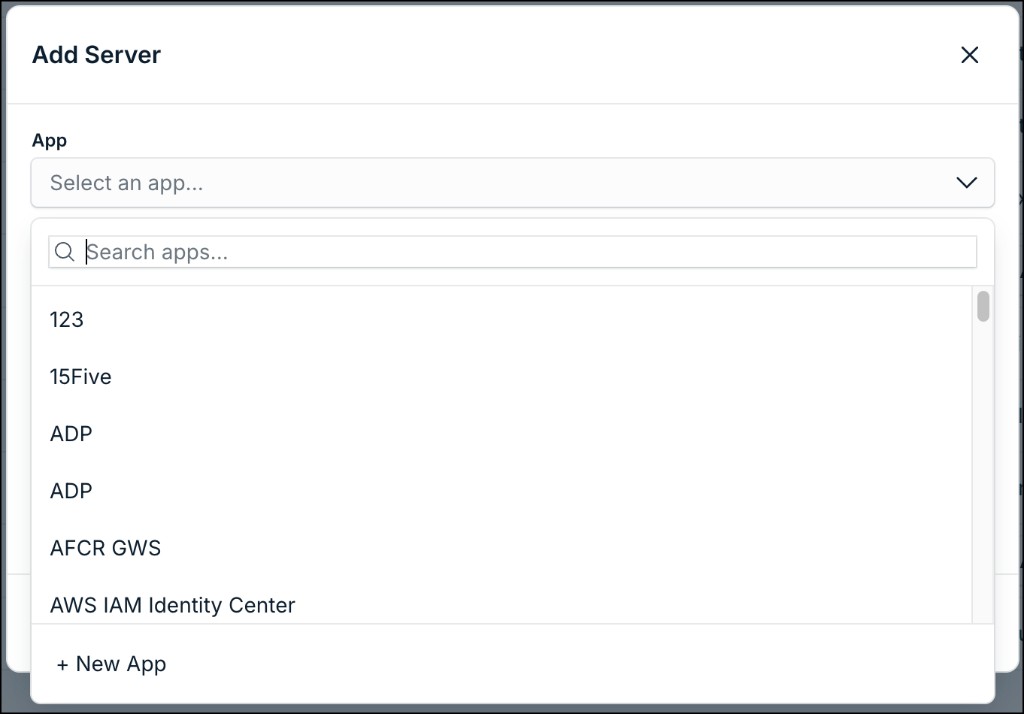

    Add Server modal in the AI Gateway Admin Portal.

  4. Under App, select an existing application in your org to control access to this server via its groups.

  5. Enter a Name, Prefix, and URL, and choose the MCP authentication method per the application’s setup guide.

  6. Click Create.

note

When configuring an MCP server with OAuth authentication, if the server requires the Client ID to be specified, use the service managed client\_id, not the corresponding JumpCloud SSO app’s client\_id. Some enterprise applications require specific configurations to generate this.

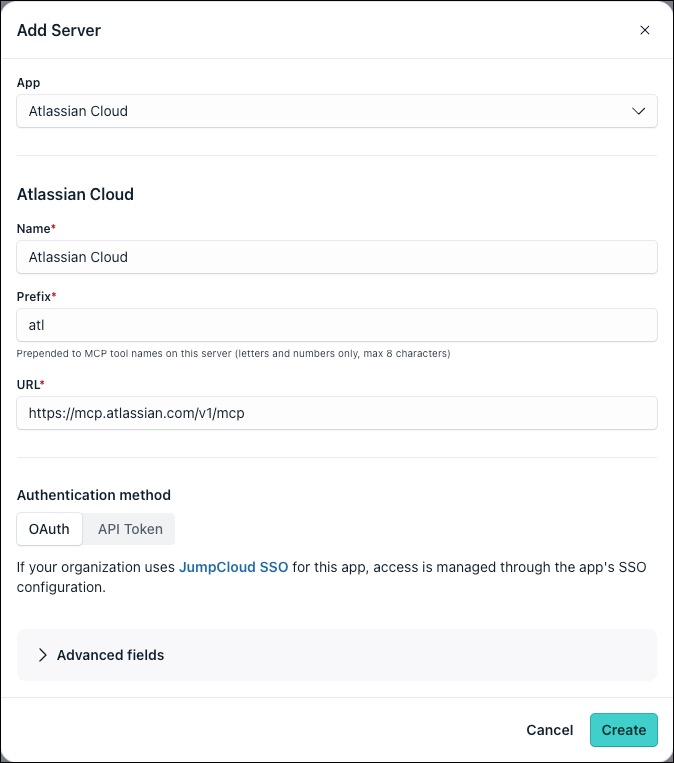

Add Server modal with MCP authentication method options selected.

Creating an Application from the AI Gateway​

If the application doesn’t exist yet, create it from the App drop-down during MCP server setup. Select the Manage MCP Servers checkbox to create an MCP-only application that does not require SSO.

  1. In Add Server, open the App drop-down.
  2. Click + New App to open the Create New Application Integration wizard.
  3. Search for and select the application’s prebuilt connector, if available. To create an MCP-only custom application, click Select under Custom Application. On the application confirmation screen, click Next.
  4. On Select Options, select the Manage MCP Servers checkbox. For an MCP-only application, leave the other capability checkboxes clear.
  5. Click Next.
  6. On Enter General Info, enter a Display Label for the application. Optionally, you can also add a Description and choose a User Portal Image.
  7. For a custom MCP-only application, enter a Bookmark URL. This field is required to save the application.
  8. (Optional) Clear the Show this application in User Portal checkbox if the application should stay hidden.
  9. Click Save Application. The application summary appears.
  10. Click Configure Application. The application opens on the User Groups tab.
  11. Assign the groups that need access to the application:
    • For users, select the required groups on the User Groups tab, then click Save.
    • For agents, click the Agent Groups tab, select the required groups, then click Save.
  12. Click the AI Gateway tab, then + Add Server.
  13. Click Continue to AI Gateway to set up the MCP server.
  14. Complete the MCP server configuration using the values in your application’s setup guide, then click Create. See Connecting Supported MCP Servers.

New applications show configuration tabs for the capabilities you select during setup. You can select other supported capabilities during application creation or add them later through Actions. You cannot remove a capability after adding it. Applications created before this enhancement retain their existing tabs.

Assigning an Application to an Existing MCP Server​

If you created MCP servers before application association was required (for example using Custom App), you're prompted to associate these servers with an application. Until you assign one, access is not scoped by the application's groups, and all users can see those MCP servers listed in the AI Gateway.

To assign an application to an MCP server:

  1. Go to Access > AI Gateway.

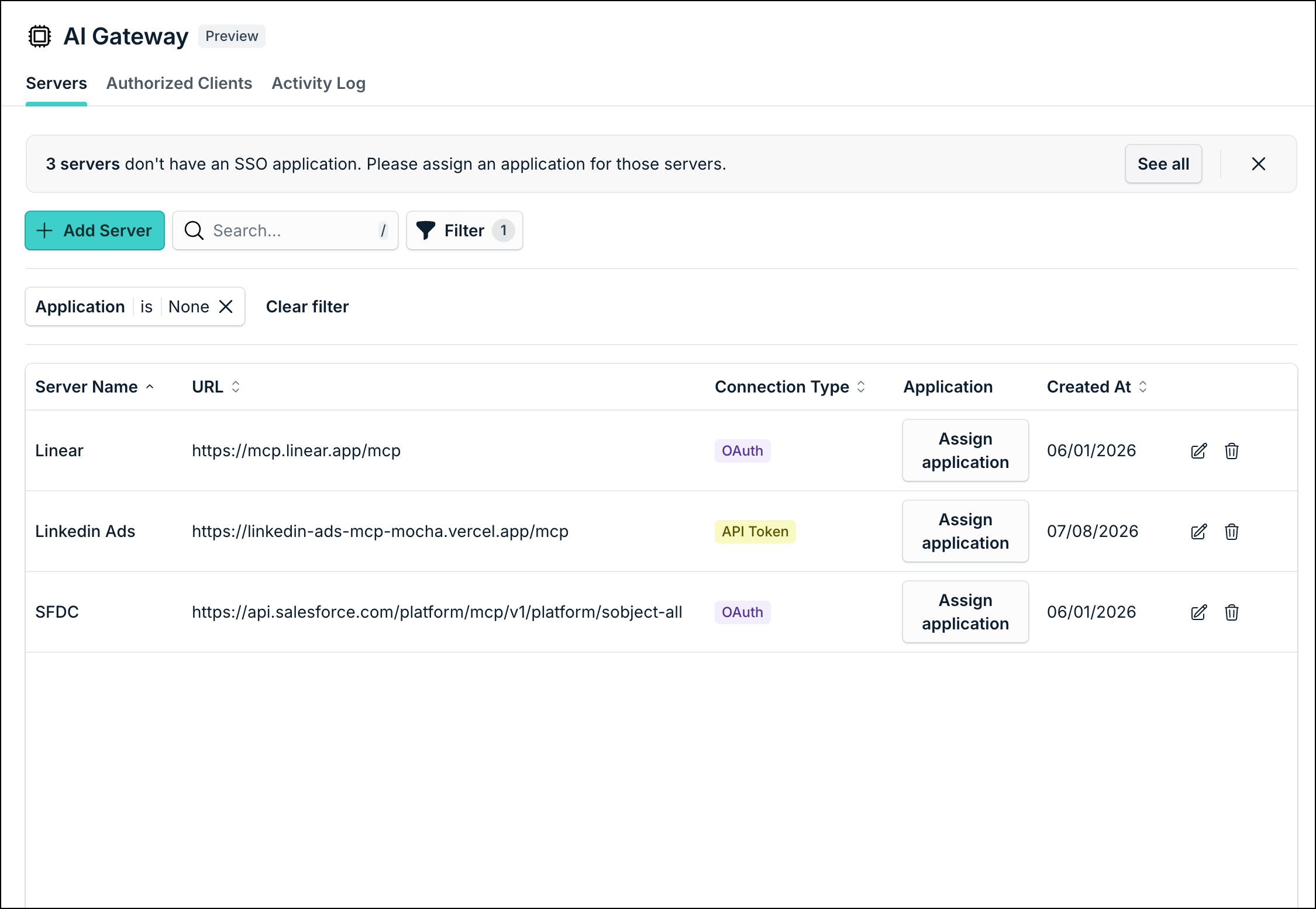

  2. Select the Servers tab. If servers need an application, a banner appears.

  3. Click See all on the banner. Alternatively, you can filter the server list to show only servers without application associations. Click Filter on the server list, then select None under Application.

  4. For each server, under the Application column, click Assign application.

  5. Select the application to associate with this server to control group access. You can select an existing SSO or MCP-only application. If the application does not exist yet, create it in Access > SSO Applications, then return here to assign it. For an MCP-only application, select the Manage MCP Servers checkbox during application creation.

  6. Repeat these steps until the banner is cleared.

  7. Verify the application’s group associations to confirm that the intended users and agents have access to its MCP servers.

Connecting Supported MCP Servers​

Configure these enterprise applications in the Admin Portal as trusted MCP servers. Because each application has unique requirements, configuration steps vary. Use the directory below to find the specific setup guide for your integration. Once configured, your users can authorize each individual MCP server through the AI Gateway.

Chat and Communications​

Cloud Computing​

Collaboration​

CRM​

Databases​

Development Tools​

Enterprise Resource Planning​

Identity and Access​

Monitoring​

Payments​

Productivity​

Project Management​

Sales​

Security​

Connecting AI Clients​

After you configure MCP servers, users must connect their specific AI clients to the AI Gateway to access them.

See Connect AI Clients to the AI Gateway to learn more.
